Flight-proven
subsystems
EOS Orbit designs and builds CubeSat subsystems and ground support equipment in Bangkok. Every subsystem design in this catalog flew on LOGSATS-2 and worked through 440 days of orbital operations. Each design passes thermal vacuum, radiation, vibration, and burn-in testing before flight.
TVAC 8 cycles / TID 20 krad (Si) / 14.1 gRMS / burn-in 72-96 h
Satellite subsystems
01-09

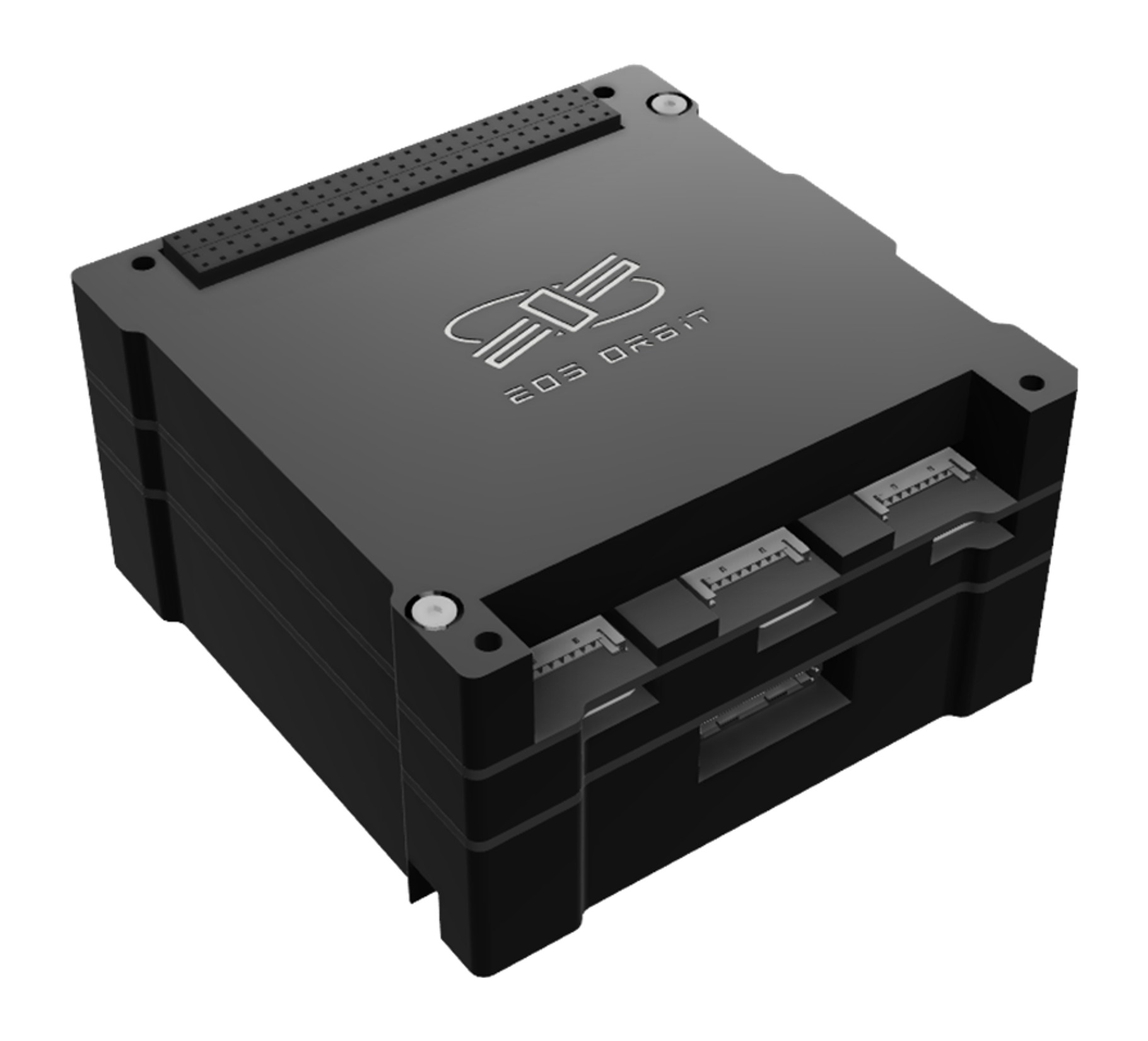

Electrical Power System
Power generation, storage, and distribution for nanosatellites.
45 Wh / 3x MPPT / PC-104

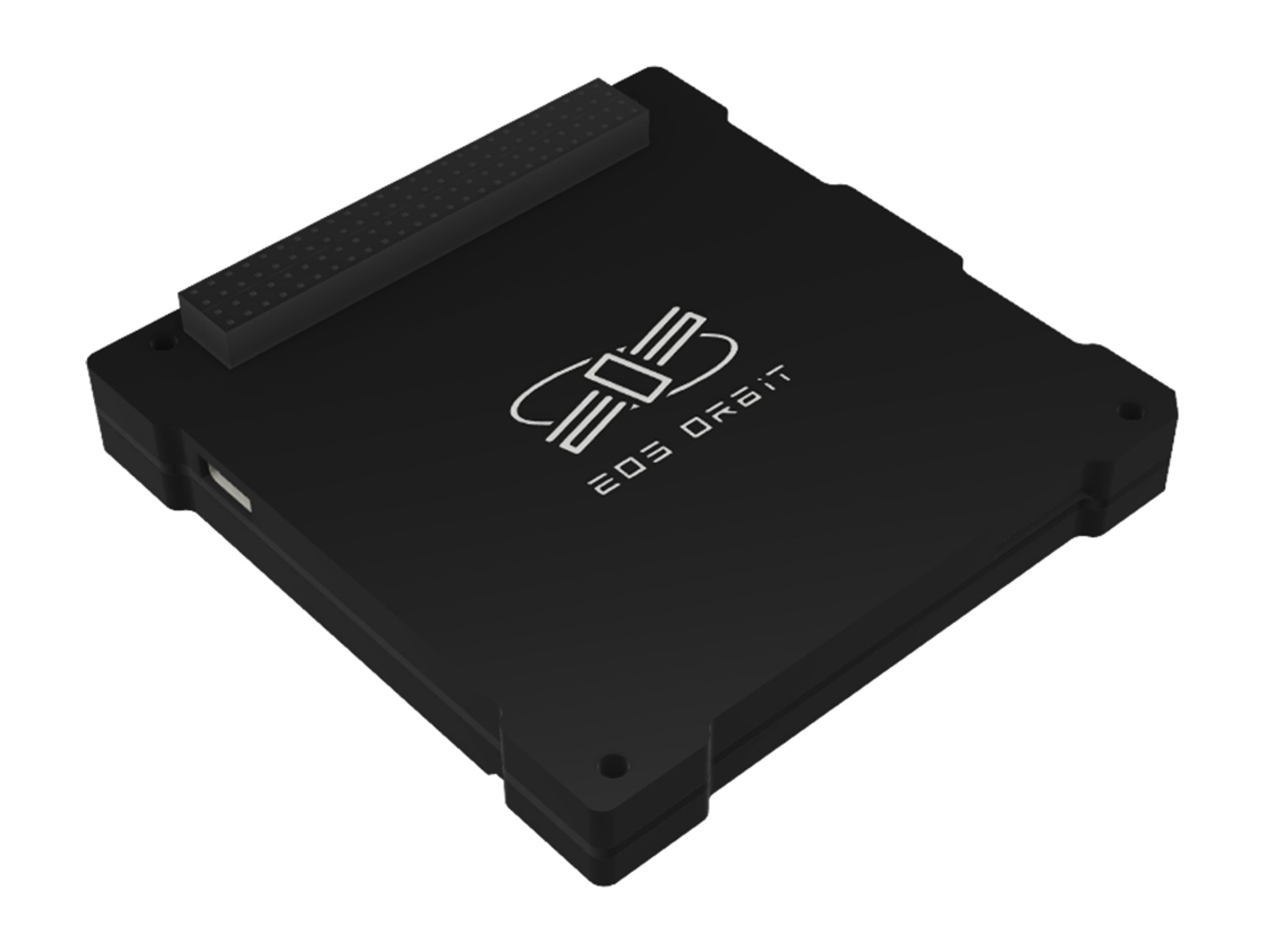

On-Board Computer
Command and data handling for nanosatellite missions.
Cortex-M4 / MicroPython / PC-104
SDR Transceiver
Software-defined radio for telemetry, telecommand, and payload downlink.
100 kHz-3.8 GHz / 2 W TX / 1 Mbps

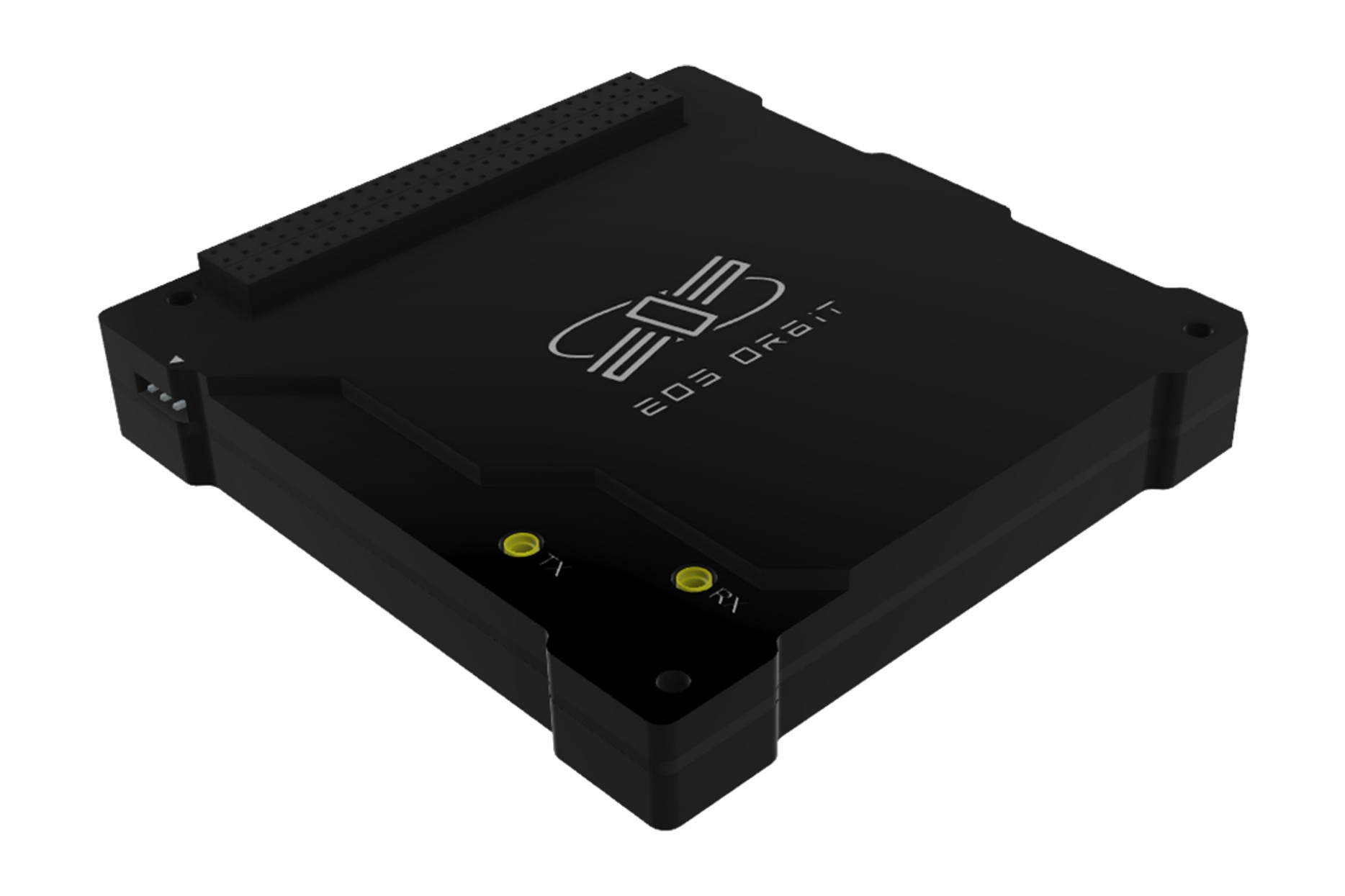

LoRa Gateway
Eight-channel LoRaWAN gateway receiving ground sensors from orbit.
8 CH / 400-510 MHz / -148 dBm

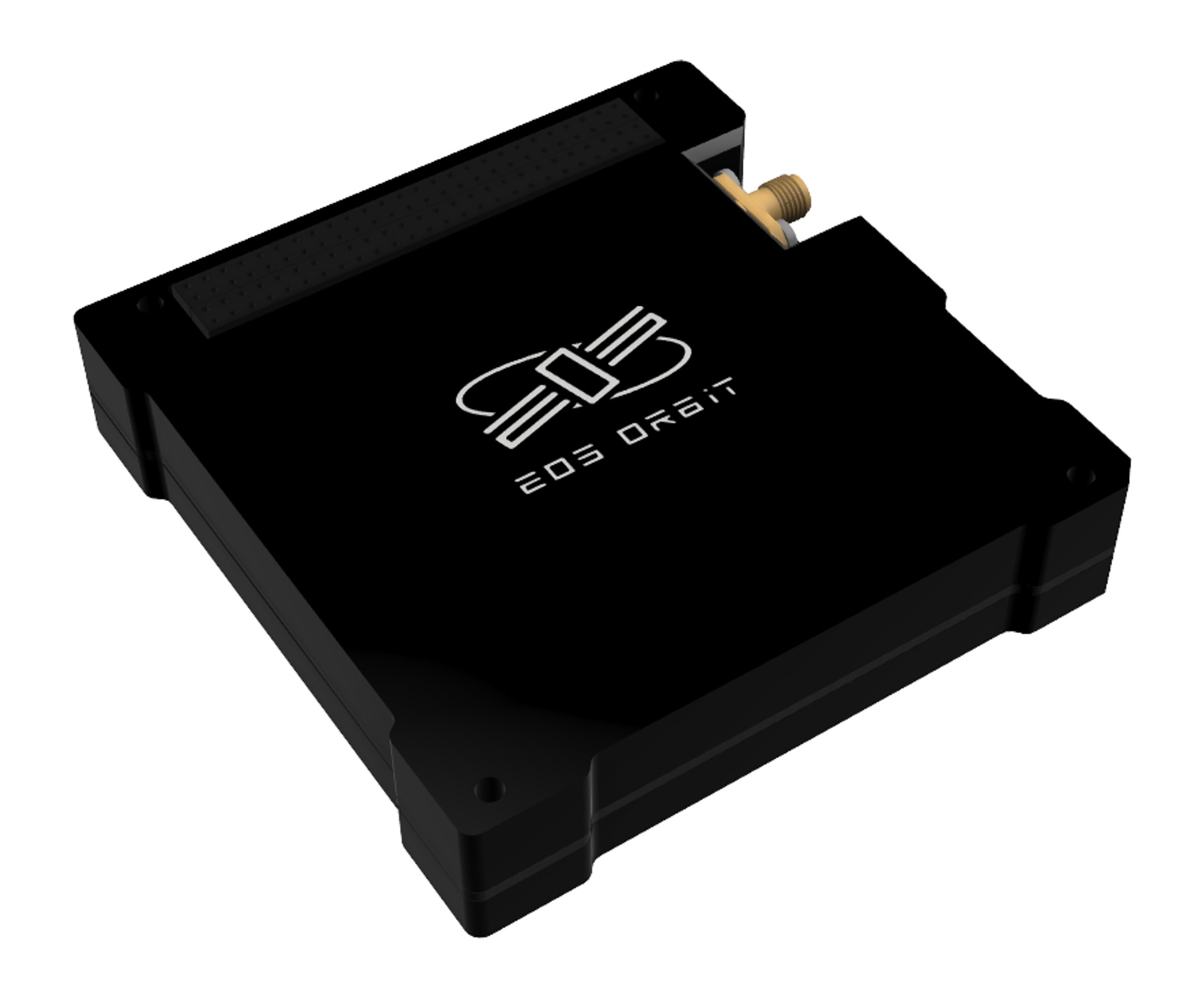

LoRa Module
Single-channel LoRa transceiver for space-to-ground IoT links.
137-525 MHz / -141 dBm / 300 kbps
Deployable Antenna
Burn-wire deployable dipole and turnstile antenna for UHF/VHF.
130-950 MHz / VSWR < 1.5 / dual redundant
Patch Antenna
High-gain patch antenna for CubeSat links and ground reception.
1090 / 2250 / 2400 MHz / 6.5 dBi

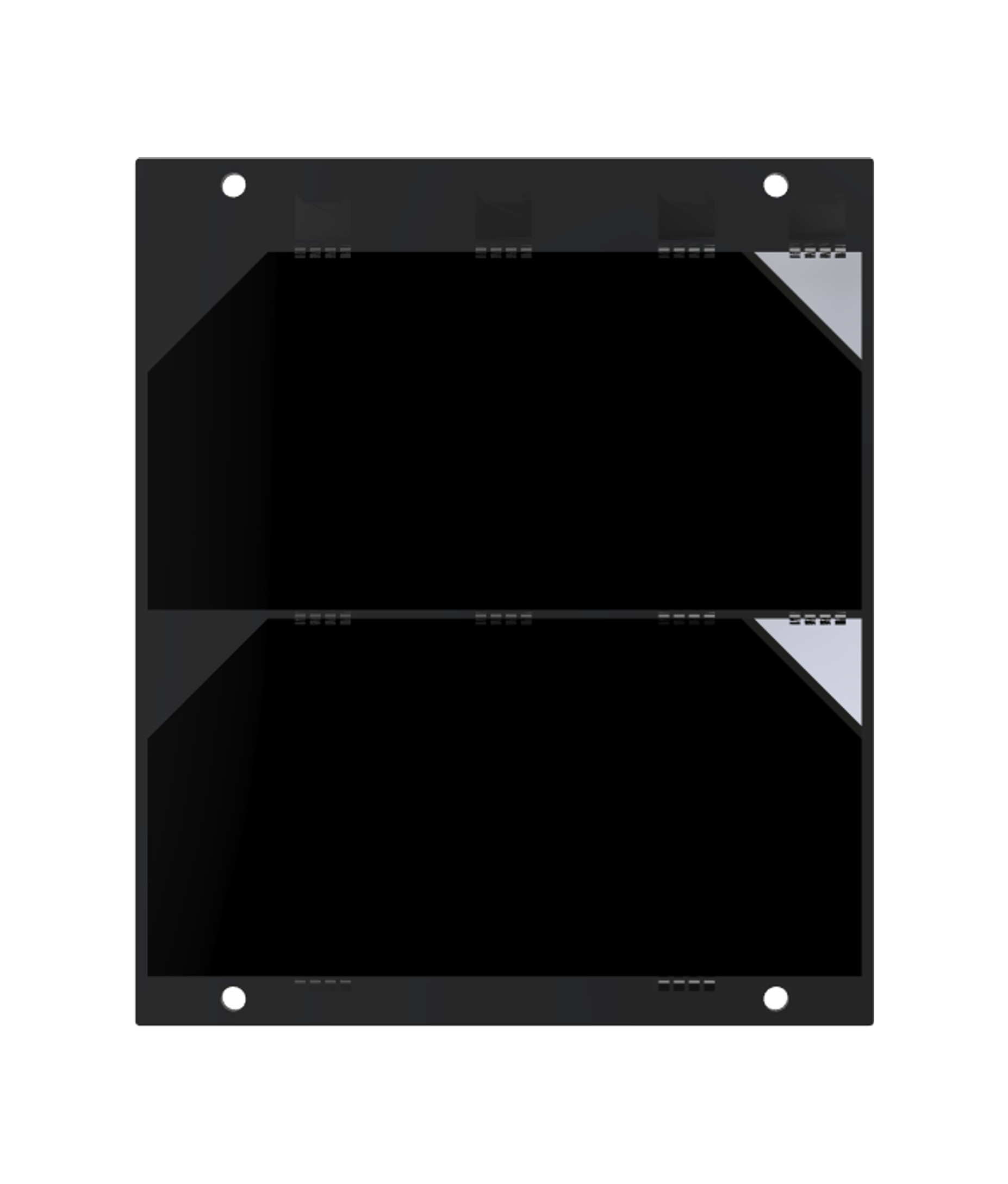

1U Solar Panel
Triple-junction solar power generation for 1U platforms.
30% triple-junction / 2 cells / 40 g

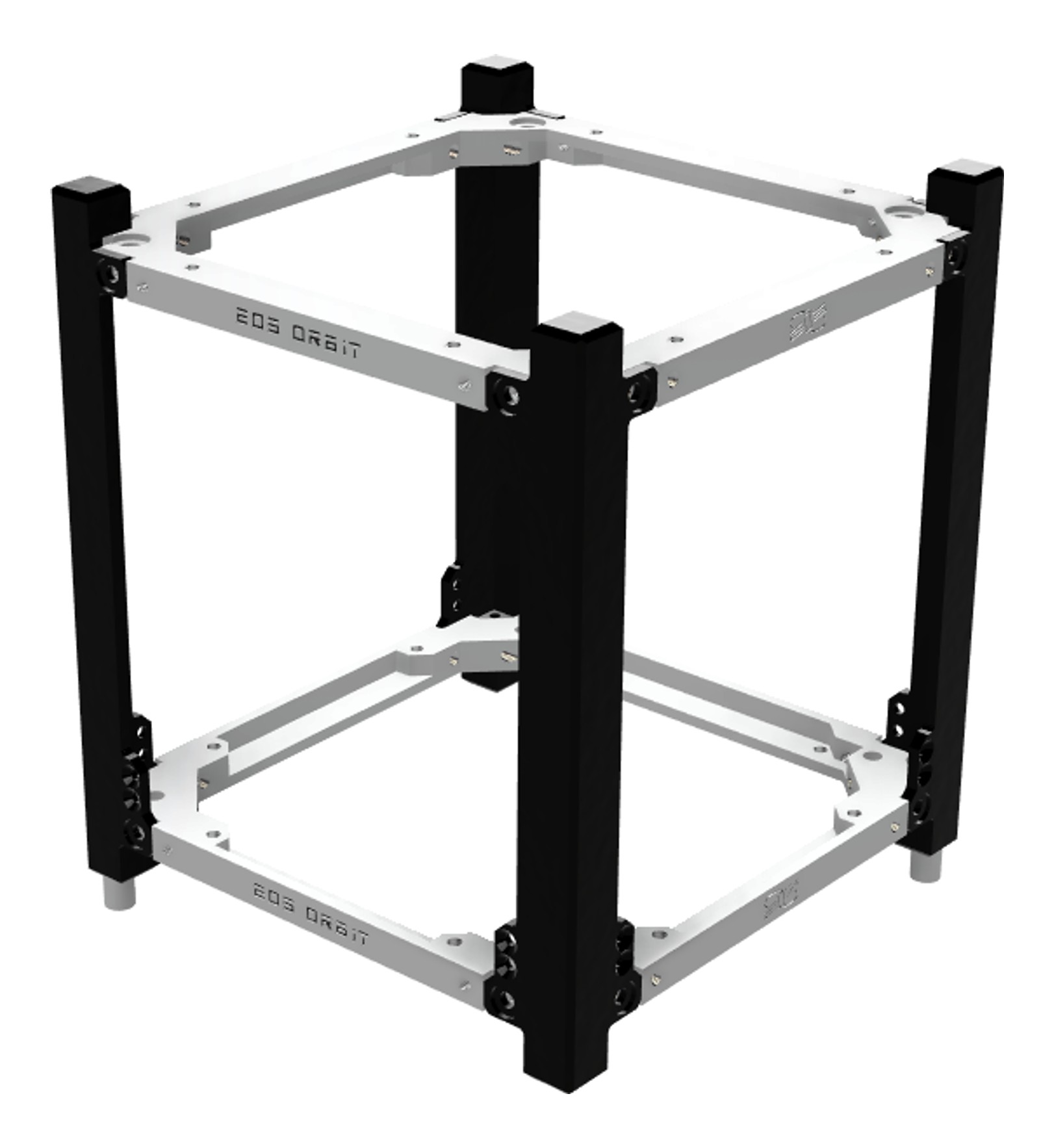

CubeSat Structure
1U primary structure, PC-104 stack compatible.
1U / Al 7075 + 6061 / 115 g
Ground support equipment
10-12Ground Control Station
Turnkey ground station for CubeSat missions.
Full TX/RX chain / tracking SW / fixed or mobile
Flatsat Platform
Bench-form satellite bus for integration and test.
Plug-and-play / full bus / bench form
Horizontal Assembly Jig
Horizontal assembly support for satellite integration.
Non-magnetic / non-conductive / horizontal
Commission a system
Write to contact@eosorbit.com with the system you need and your mission parameters. The engineering team that designed and flew these units responds with configuration options, lead time, and test documentation.
Contact engineering →Built and qualified in Bangkok / datasheets on request
