LoRa Gateway
Eight-channel LoRaWAN gateway receiving ground sensors from orbit.
- Channels
- 8x 125 kHz, simultaneous
- Frequency
- 400 - 510 MHz
- Sensitivity
- -148 dBm
- Mass
- 250 g
Overview
The EOS Orbit LoRa Gateway is an eight-channel LoRaWAN gateway built for orbit. An SX1301 concentrator monitors eight 125 kHz channels simultaneously between 400 and 510 MHz with sensitivity down to -148 dBm, and a custom LoRaWAN network server runs onboard.
Ground sensors transmit on standard LoRa hardware; the gateway receives, validates, and stores their packets, then forwards them to the satellite bus over CAN. The design is ruggedized for LEO with watchdog recovery, e-fuse protection, and ESD and EMI mitigation.
Features
- 8 simultaneous LoRa channels, 125 kHz each
- 400 - 510 MHz with custom frequency configurations
- Sensitivity to -148 dBm
- Custom onboard LoRaWAN network server (v1.0.1, ABP)
- Packet timestamping for time-of-arrival measurement
- 2.1 W typical in gateway mode, 1 W idle
- Watchdog, short-circuit, over/under-voltage, ESD, and EMI protection
- Optional camera (CSI), PPS input, custom bands
Specifications
Radio
Electrical
Physical
Qualification

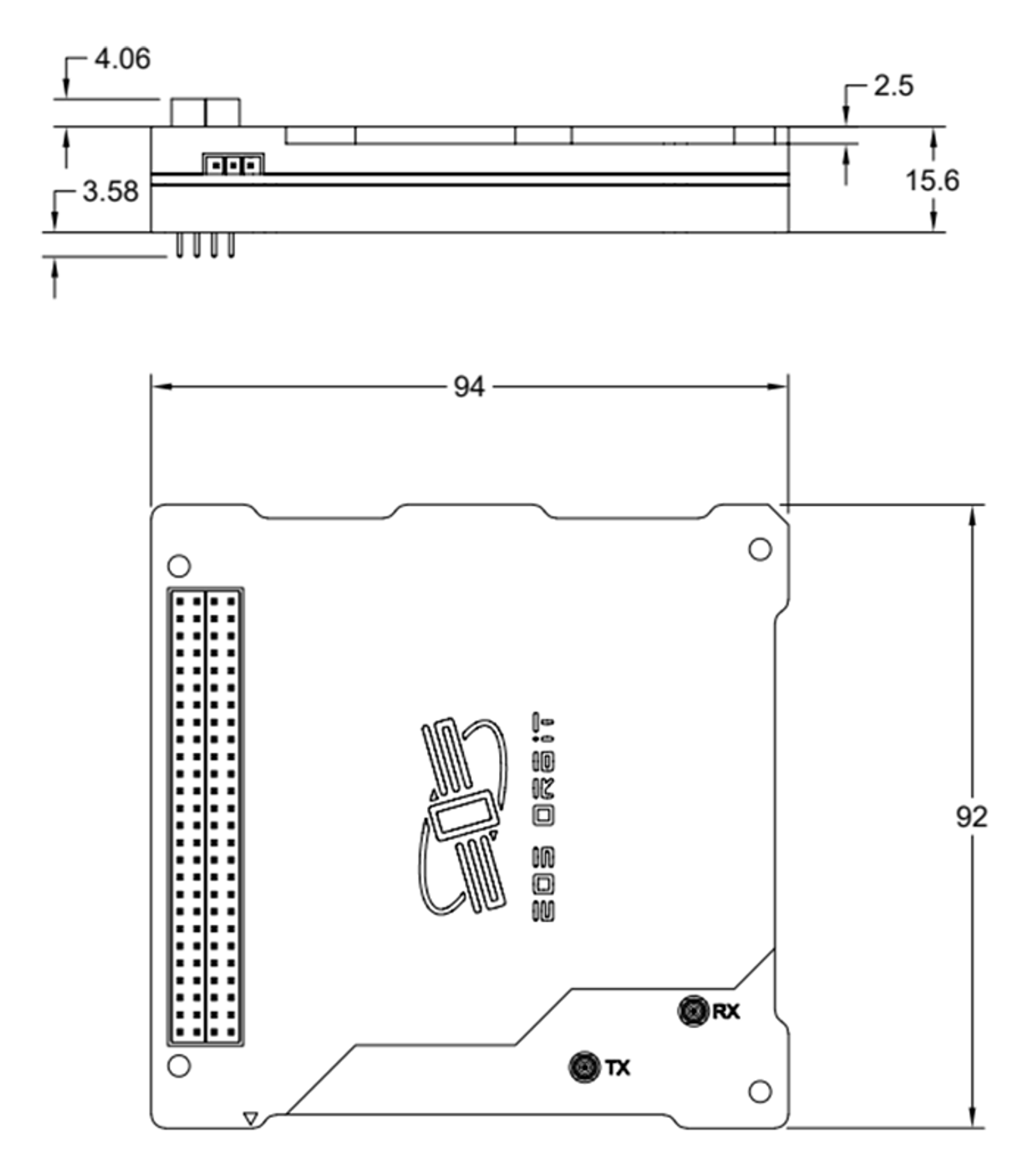

Mechanical
Heritage
Flown on LOGSATS-2. Launched January 15, 2025, on a SpaceX Falcon 9. 440 days of orbital operations.
Commission this system
Write to contact@eosorbit.com with your mission parameters. The engineering team responds with configuration options, lead time, and test documentation.
Contact engineering →EOS-LORAGW-DSH-01 / datasheet on request
